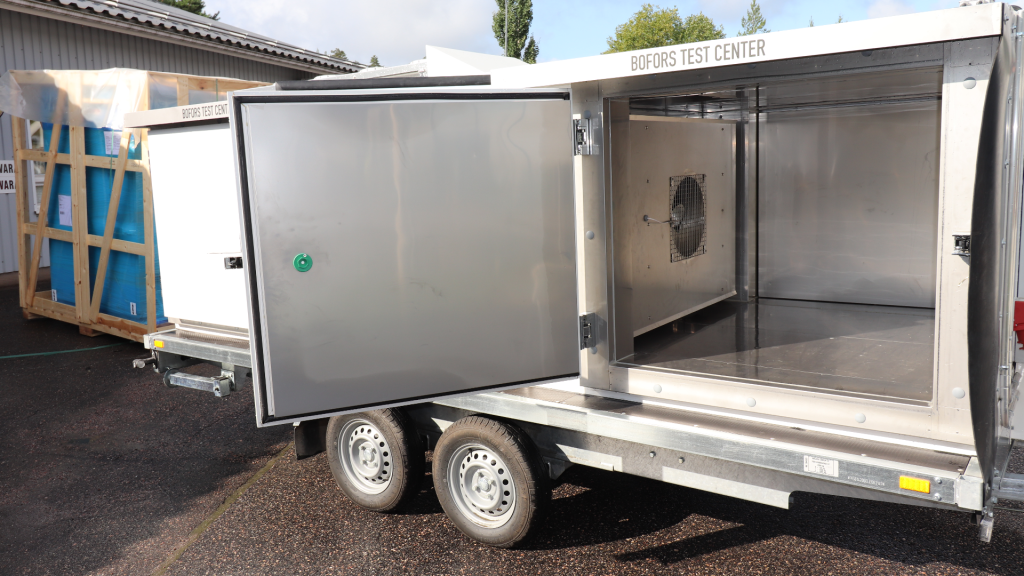

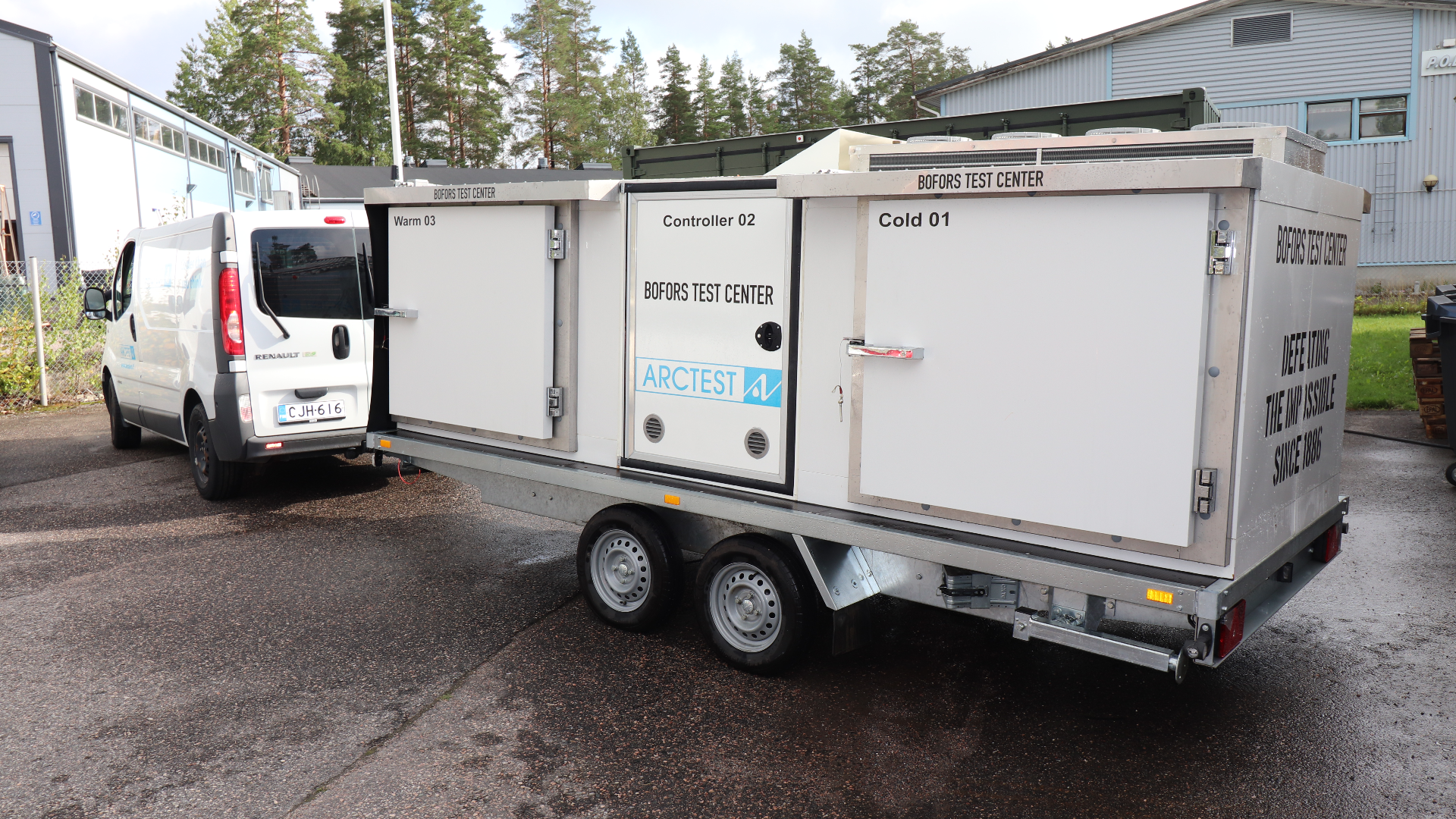

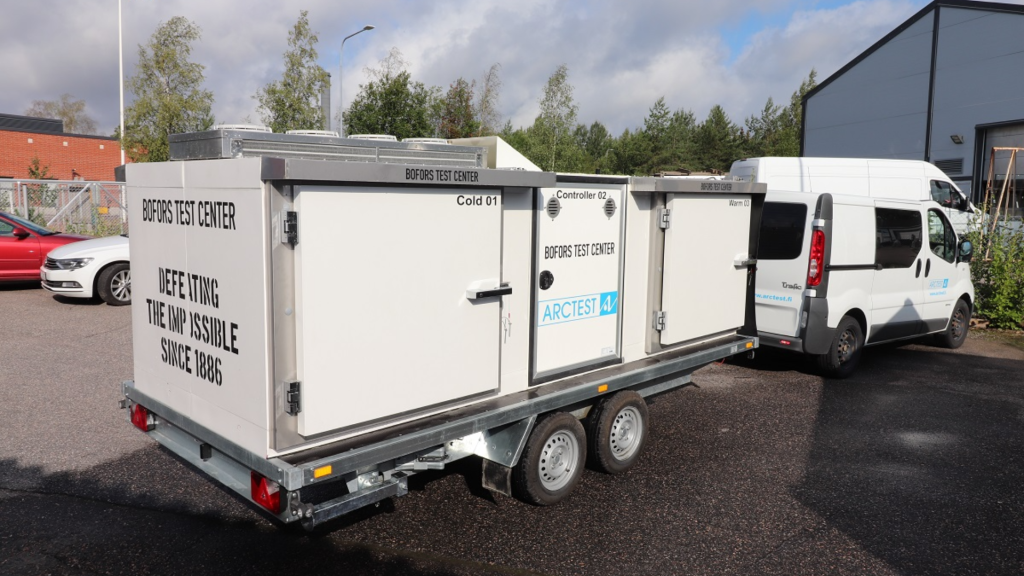

We delivered to the SAAB Bofors Test Center a climate simulation trailer, with two tests rooms. The construction is placed on a standardized trailer that can be towed by ordinary cars with a towbar.

TECHNICAL SPECIFICATION

Product: ARCWAG-2 / -54..-10/0…+71
A 20ft temp test container, which is based on the "standard" road container
Inner dimensions test rooms approx. 1200x1100x1000mm (DxWxH)

Test chamber A&B
A. climate -54...-10 / B. climate 0...+71°C
Control stability and uniformity +/- 1ºC
Insulated walls, 150mm
Wide doors (2) on each side of the trailer

The temperature can be controlled in a ramp function.
Actual values and set values in the chamber can be viewed digitally on the control panel.
The recording function makes it possible to create a graphic presentation of the development of the test process in the display.

Program editor included. The test programs can be edited and sent via PC to the control unit.
