ARCMIL-202

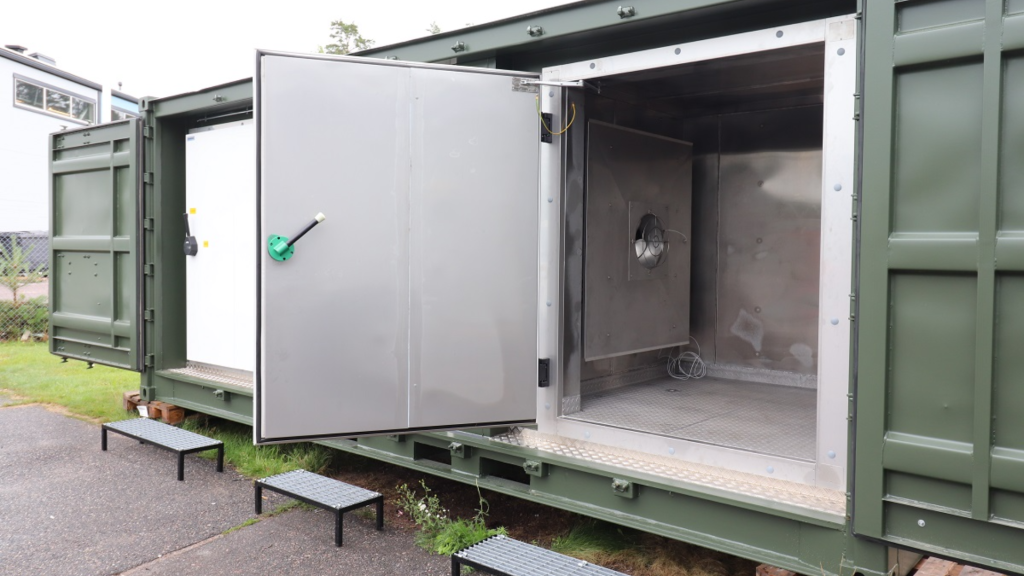

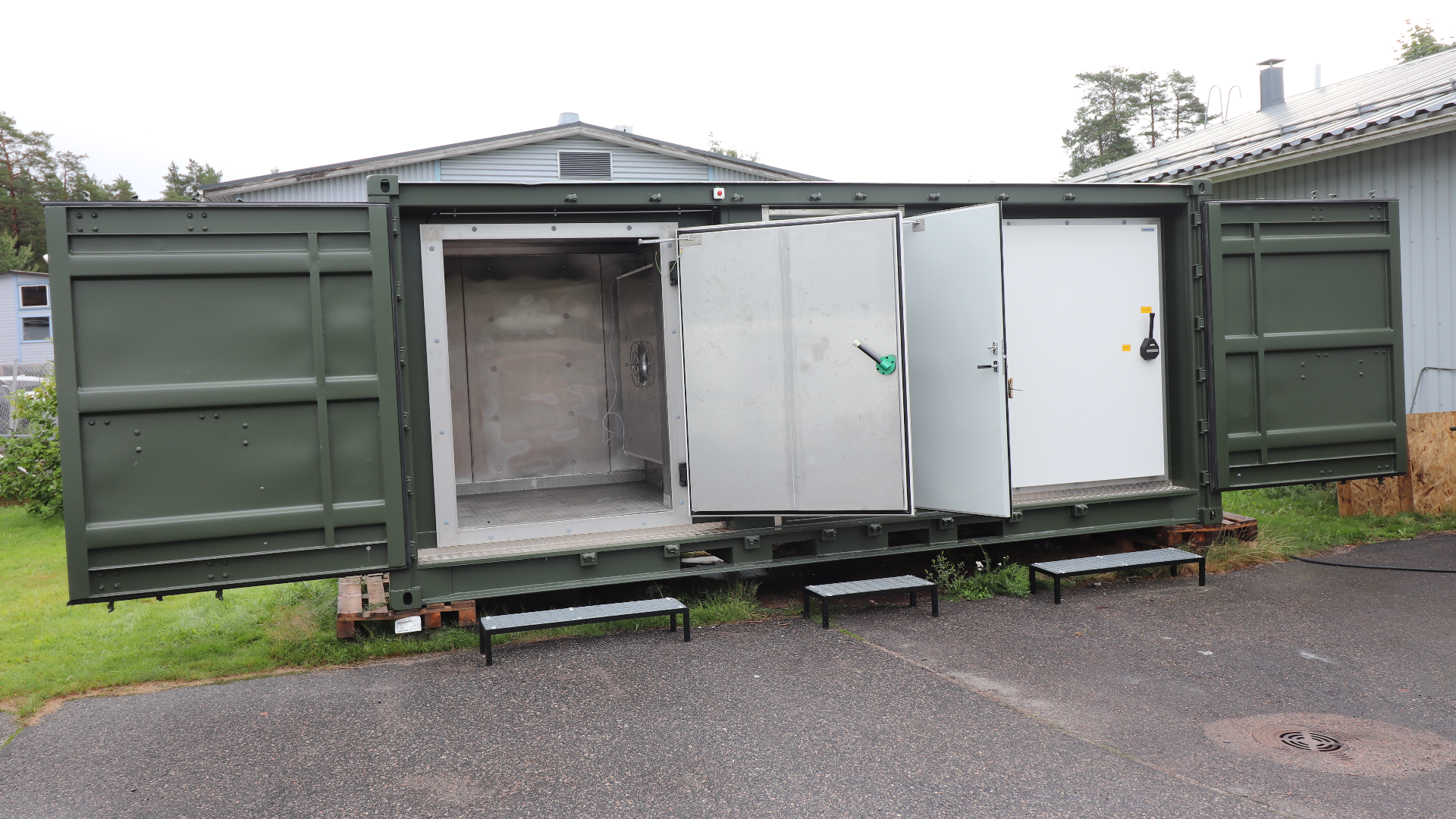

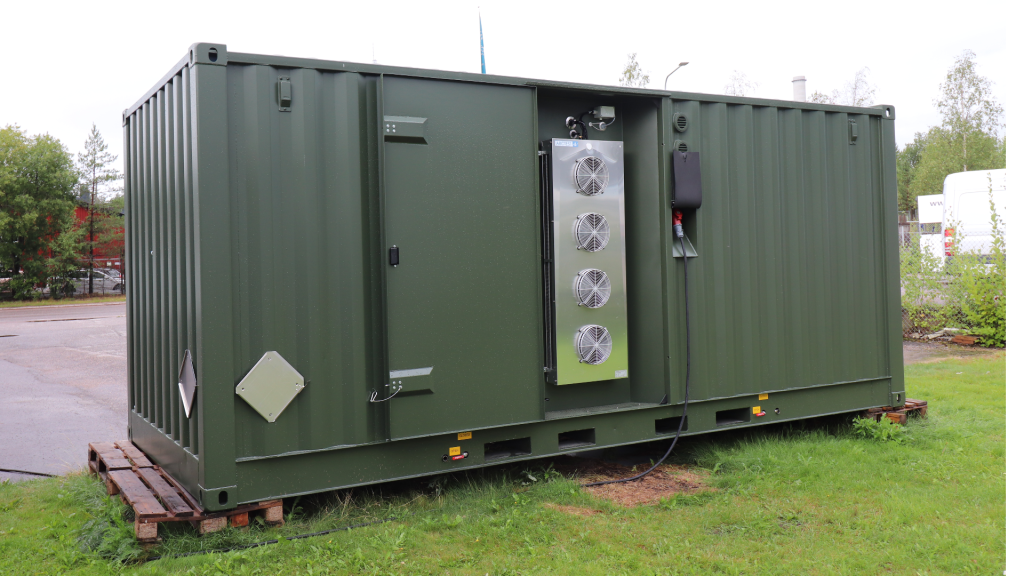

We delivered a 20 ft container, that consists of three rooms: - engine compartment - cold test chamber - hot test chamber Construction is based on standard street container.

TECHNICAL SPECIFICATION Product: ARCMILC-202 / -54..+21/+5…+80°C External dimensions 6000x2400x2700mm (LxWxH) Engine compartment Internal dimensions approx. 1550x2100x2100mm (LxWxH) Heating, approx. 20°C Test chamber A&B Internal dimensions approx. 1650x2000x2100mm (LxWxH) A. climate -54…+21 / B. climate +5…+80°C. Control stability and uniformity +/- 1ºC Isolated walls, 150mm Wide doors(2) at the side of the container Non slip floor Point load, min. 1000kg/m2 The temperature can be controlled in ramp function. Actual values and set values in the chamber can be seen digitally on the control panel. The recording function enables to create a graphical presentation of the development of the test process in the display. Program editor is included. The test programs can be edited and sent with PC to the controller.
